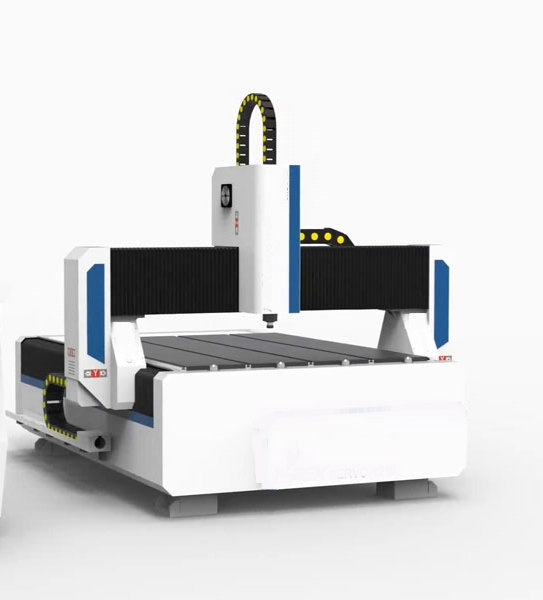

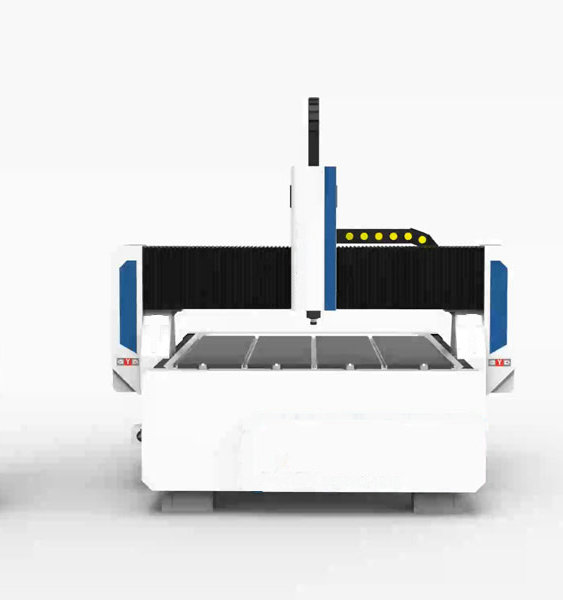

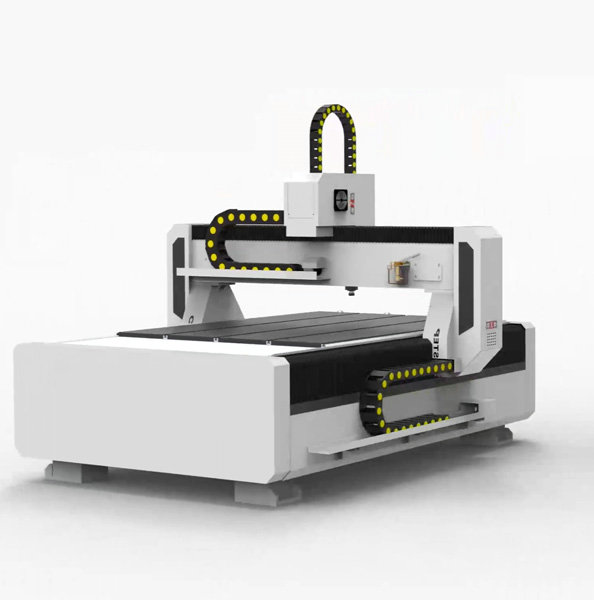

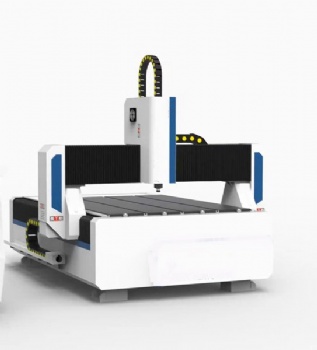

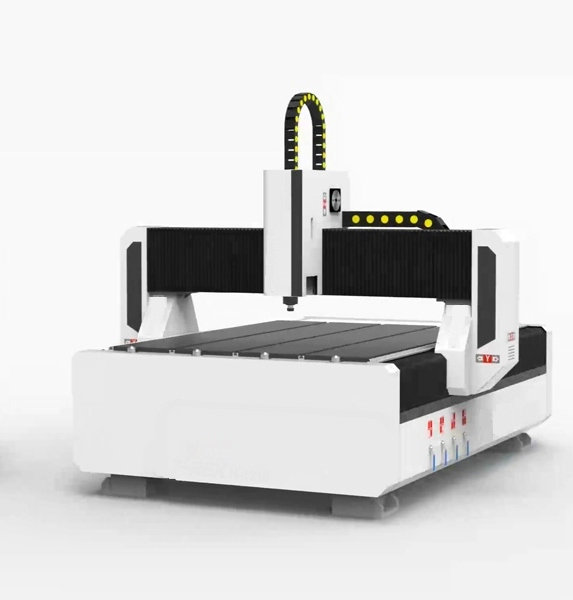

4' x 6' CNC Router

Unleash the full potential of your shop by adding this CNC.

The full-sized 4' x 6' CNC router has the capacity to fit a full 4' x 6' sheet of plywood and has ample spindle clearance for those thicker workpieces such as live edge slabs.

The massive work area features a 4-zone vacuum table with a 7 HP pump to secure workpieces.

Between the 6 HP, 18,000 RPM spindle, and the AC servo-controlled X- and Y- axes that approach rapid speeds of 1,600 inches per minute, this router is ready to quickly remove material.

The ER32 collet system allows for a wide array of tooling options and the included tool setter makes it simple to set them up.

An air-cooled spindle and automatic oiler system mean no extra hassle with cooling systems or maintenance schedules.

The integrated, hand-held controller allows you to store programs to its hard drive or load programs from a flash drive. It can even connect directly to you PC for file transfer and/or controller software updates.

This machine is compatible with many common CAD/CAM platforms including.If you are wanting a more in-depth overview of the design software used with machine, please contact with us and watch video on how to get started with CNC.

Increase your shop’s production with this value-packed CNC machine.

The complete and easy-to-read manual makes it easier to assemble and maintain your machine.

Like all of the computer numeric controlled machines, the machine comes with a 3-year warranty covering parts and assuring the unit is free from factory defects (Consumables are not covered by the warranty); we have 21 years Customer Service experience and professional Technical Support Teams.

Parts and accessories for the CNC machine may be available online and shipped by fedex from china.

Made in an ISO 9001 factory

CE certified

SPECIFICATIONS:

• Spindle motor: 6HP 4.5KW, 220V, 3-phase, 16A 18000rpm

• Axis motors: stepper or AC Servo Motor

• X-Axis working size: 1200mm


• Y-Axis working size: 1800mm

• Z-Axis working size: 200mm

• XY- rapid speed: 38m/min,

• Z- rapid speed: 20m/min

• Cutting accuracy: +/-0.05

• Collet: ER32, 1/4", 1/8", 4mm, 6mm

•


FEATURES:

• DSPA11/NC stuido/LNC/Syntec/Siemens Sinumerik 808D Advanced with built-In digital display and input

• air-cooled spindle motor


• Vacuum table with six independently controlled zones

• Tool touch-off pad for quickly setting Z-axis height

• Helical rack-and-pinion X- and Y- gantry travel, Z ball screw;


•


  ACCESSORIES:

• Collets: 1/4", 1/8", 4mm, 6mm

• Open-end 41/46 wrench

• ER32 collet wrench

• Six T-track hold down clamps

• Vacuum table plugs

• Dust collection shoe with hose attachment

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.

Description:

4x6 CNC Router, 1218 CNC Router for Sale at best price. This is an entry-level CNC router, which is affordable, durable and powerful, and is easy to learn and operate. It is a top choice for small businesses and beginners.

Features:

1. This 4x6 CNC router is good at cutting & engraving wood, plywood, MDF, plexiglass, acrylic, PPMA, plastic, carbon fiber, soft metal (copper, aluminum), make a perfect wood inlay, etc.

2. 4x6 CNC router is a good choice for both personal hobby uses and commercial purposes.

3. With a single control box placed inside the cnc, this design saves more working space.

4. CNC router kits of this type are cost-efficient, and it saves a lot and is very economical in terms of maintenance.

Application:

Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, beds, desks, night stands Decoration industry: door frames, photo frames, mirror frames, screens, lights, holiday decorations

Craft industry: artworks, gifts, souvenirs, clock frames, holiday ornaments

Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights,

Other wooden products: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical equipment, electronics or other containers

Material:

Wood: natural wood, plywood, soft wood, hard wood, fiberboard, particle board, melamine board, LDF, MDF, chipboard;

Plastic and rubber: acrylic, ABS, HDPE, PVC, LDPE, UHMW, resin, double-colored board, PP, EVA;

Stone: granite, marble, slate, basalt, pebbles, ceramic, porcelain, natural and artificial stones;

Soft metal: aluminum, brass, copper, mild steel;

Composite: aluminum plastic composite, copper composite, titanium composite, zinc composite;
