CNC Router, CNC Router Machine, Wood Carving Machine, CNC Machine, Engraving Machine; used to engrave and cut on wood, MDF, PVC, foam, acrylic, stone, marble, aluminum;

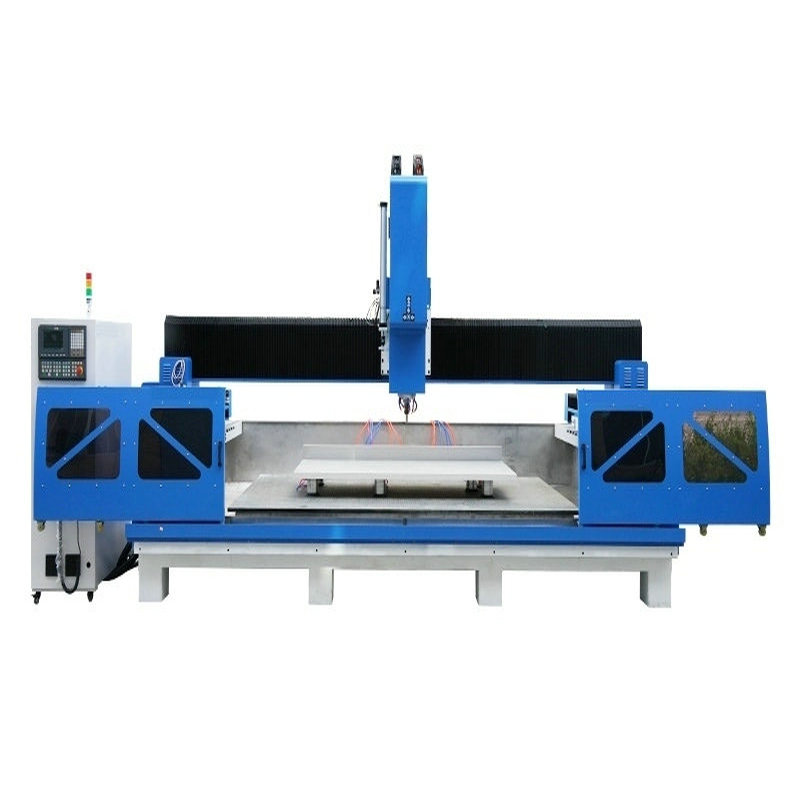

5' x 10' stone CNC Router

This machine is compatible with many common CAD/CAM platforms including.If you are wanting a more in-depth overview of the design software used with machine, please contact with us and watch video on how to get started with CNC.

Increase your shop’s production with this value-packed CNC machine.

The complete and easy-to-read manual makes it easier to assemble and maintain your machine.

Like all of the computer numeric controlled machines, the machine comes with a 3-year warranty covering parts and assuring the unit is free from factory defects (Consumables are not covered by the warranty); we have 21 years Customer Service experience and professional Technical Support Teams.

Parts and accessories for the CNC machine may be available online and shipped by fedex from china.

Made in an ISO 9001 factory

CE certified

SPECIFICATIONS:

• Spindle motor: 6HP 4.5KW, 220V, 3-phase, 16A 18000rpm

• Axis motors: stepper or AC Servo Motor

• X-Axis working size: 1530mm


• Y-Axis working size: 3050mm

• Z-Axis working size: 400mm

• XY- rapid speed: 56m/min,

• Z- rapid speed: 20m/min

• Cutting accuracy: +/-0.03

• Collet: ER32, 1/4", 1/8", 4mm, 6mm

•


FEATURES:

• NC stuido/LNC/Syntec/Siemens Sinumerik 808D Advanced with built-In digital display and input

• water-cooled spindle motor 7.5kw bt40-er32


• Tool touch-off pad for quickly setting Z-axis height


• Helical rack-and-pinion X- and Y- gantry travel, Z ball screw;


•


Description:

CNC machining center can process stone kitchen sinks, stone countertops, basins, etc. It integrates edging, polishing, drilling, milling, and special-shaped cutting. One-key intelligent completion of conventional blanking, 45° bevel cutting, multi-angle arbitrary cutting, etc.

Features:

1. High degree of automation.  The entire process of grinding, polishing, drilling, milling and other actions in accordance with preset instructions. So it achieve seamless intelligent processing.

2. Widely used. It can be widely used in the processing of kitchen countertops, bathroom countertops, bar island countertops, coffee table tops, stone tabletops, etc.

3. Intelligent environmental protection. Automatic environmental protection processing in the whole process; build a dust-free workshop and refuse pneumoconiosis.

4. Simple and easy operation. workers can get started in one working day, which is more worry-free.
5. All parameters and accessories can be customized according to processing requirements, you can choose different CNC kits for this stone engraving machine with the help of our sales manager;

CNC Stone engraving machine is a CNC stone router, we also call it CNC marble engraving machine, it is good at engraving works on stone/marble, and is also able to carve or cut stones with different bits;

CNC Stone machining center will have a better efficiency on stone carving and cutting, if you have a lot of need on carving and cutting, and want to work high efficiently, considering a stone machine center.

Application:

Its major functions include embossing, lettering, hollowing out, cutting, seamless stitching, milling, grinding, etc. So it has wide applications in garden engineering, inscription, stone sculpture, craft, and artwork industries.
