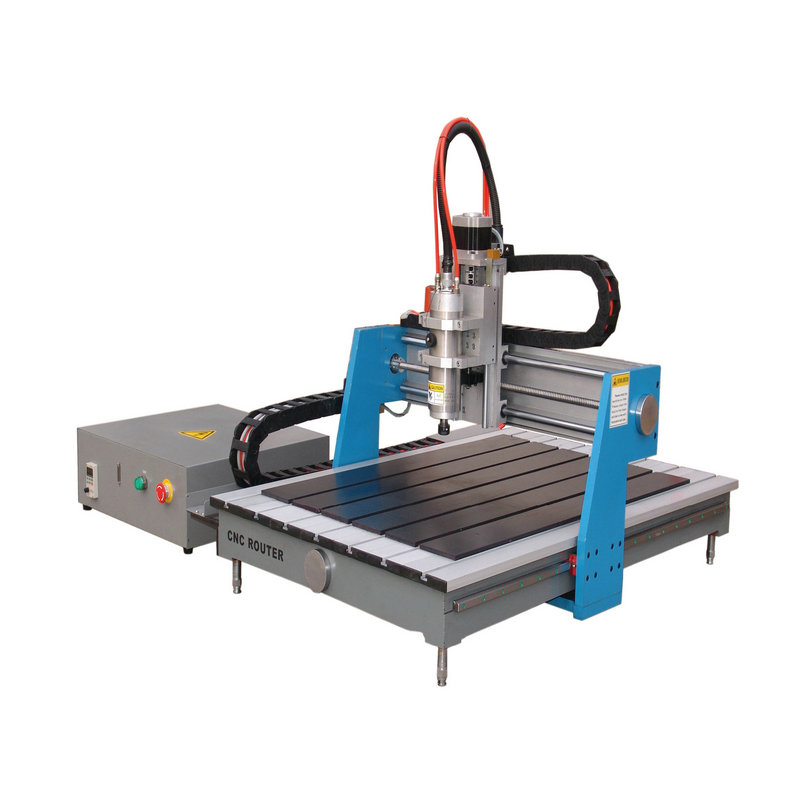

24" x 36" CNC Router Redefining small-scale precision production.

CNC Router boasts a large 23-5/8" x 35-3/8" cutting area with a 3 HP, 24,000 RPM spindle motor to do the work.

This machine features stepper motor driven ball screws on all axes that can approach cutting speeds of 400 inches per minute. This ensures accurate, repeatable results and saves you precious time in the shop.

The integrated controller allows you to store commonly used programs on the hard drive as well as load programs from a flash drive or even connect directly to you PC.

The spindle utilizes ER20 collets allowing for a wide range of tooling options.

The one-shot oiler for the precision ground bearing carriages and the water cooled spindle prove that this machine is ready for production.

This machine is compatible with many common CAD/CAM platforms including.

Like all of the computer numeric controlled machines, the machine comes with a 3-year warranty covering parts and assuring the unit is free from factory defects (Consumables are not covered by the warranty); we have 21 years Customer Service experience and professional Technical Support Teams.

Parts and accessories for the CNC machine may be available online and shipped by fedex from china.

SPECIFICATIONS:

• Required power supply: 220V, single-phase, min. 20A circuit

• Spindle motor: 3HP 2.2KW, 220V, 8A

• Axis motors: Stepper, 4.3A

• X-Axis working size: 600mm


• Y-Axis working size: 900mm

• Z-Axis working size: 100mm

• XY- rapid speed: 8m/min

• Z- rapid speed: 8m/min

• Cutting accuracy: +/-0.05


• Collet Size: ER20;  1/8", 1/4", 1/2"

FEATURES:

• Ball-screw driven XYZ-axis


• Table with T-track

• Digital display w/USB port and keypad

• Liquid-cooled spindle

Description:

Mini 2'x3' 6090 mini wood carving machine has a smaller working table of 24x36 inches. With the advantages of small footprint, easy operation, best price, it is especially suitable for the hobby users or smaller shop.

Features:

1. The effective working table size can be increased and designed according your requirements.

2. Adopting a water cooling spindle, it brings good cooling effect and less noise.

3. Adopting an integral cast iron frame, the machine is more durable and stable in operation.

4. With Taiwan TBI ball screw for Z axis, it has the advantages of high precision and smooth transmission.

Application:

Wood: redwood classical and antique furniture, wood carving, gifts wooden box engraving, redwood jewelry boxes, ink-stone cutting, decorative products sculpture, fine jewelry carving and someothers; Letter cutting, sign engraving: Makes all models. Such as company plate, sings, building models, emblem, badge, display panels, fair signs, building numbers, signs of decoration, furniture and others.
