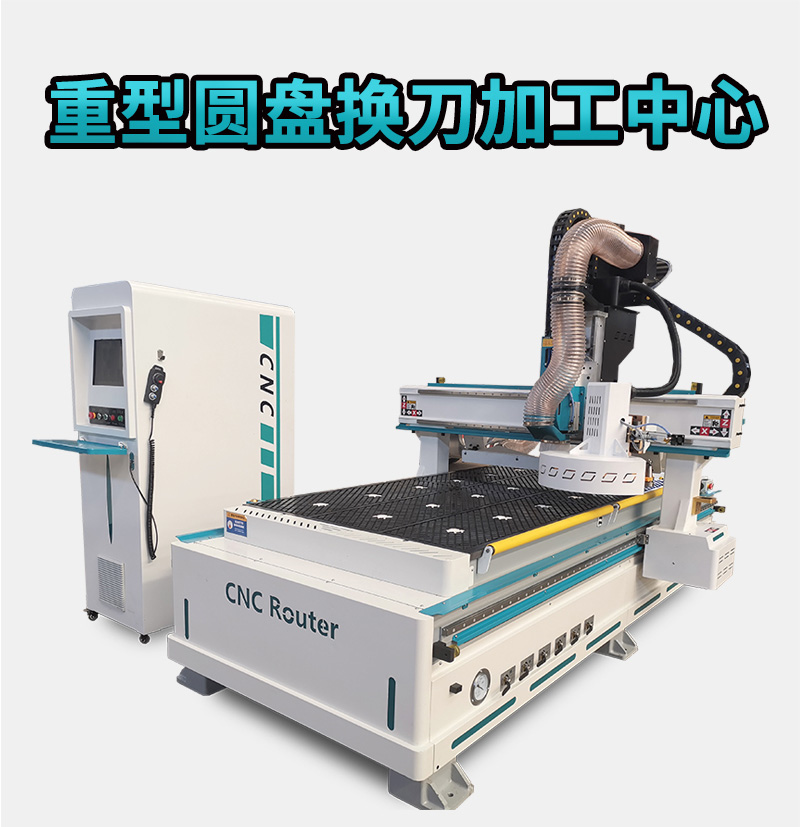

4' x 8' CNC Router w/ Vacuum Table and Linear Tool Changer

Increase precision and productivity in your production shop.

The CNC Router is a unique machine. it can cut in 3D.

From small surface engraving to large organic shapes, this machine will truly allow your creativity to run wild.

Featuring a linear automatic 8-tool changer, this is the most advanced CNC router we offer, capable of machining complex surfaces over the entire surface of the 4' x 8' bed.

The table has four independently controlled vacuum zones to secure your workpieces during cutting operations.

The compact and user-friendly Nc studio/LNC/Syntec/Siemens Sinumerik 808D Advanced control is a panel-based CNC controller for basic turning and milling applications.

This machine is compatible with many common CAD/CAM platforms including. If you are wanting a more in-depth overview of the design software used with machine, please contact with us and watch video on how to get started with CNC.

Increase your shop’s production with this value-packed CNC machine.

Like all of the computer numeric controlled machines, the machine comes with a 3-year warranty covering parts and assuring the unit is free from factory defects (Consumables are not covered by the warranty); we have 21 years Customer Service experience and professional Technical Support Teams.

Parts and accessories for the CNC machine may be available online and shipped by fedex from china.

Made in an ISO 9001 factory

CE certified

SPECIFICATIONS:

• Spindle motor: 12HP 9KW, 220V, 3-phase, 24.3A 24000rpm

• Axis motors: Servo Motor, 3.0A

• X-Axis working size: 1300mm


• Y-Axis working size: 2500mm

• Z-Axis working size: 200mm

• XY- rapid speed: 56m/min

• Z- rapid speed: 20m/min

• Cutting accuracy: +/-0.03

• Collet: ER32M 1/4", 1/8", 4mm, 6mm

•


FEATURES:

• NC stuido/LNC/Syntec/Siemens Sinumerik 808D Advanced with built-In digital display and input

• Linear automatic 8-tool changer

• air-cooled spindle motor


• Vacuum table with six independently controlled zones

• Tool touch-off pad for quickly setting Z-axis height

• Two-stage air vacuum pump (requires separate 3-phase, 220V hardwire connection)

• Automatic oiler for bearing rails

• Helical rack-and-pinion X- and Y- gantry travel, Z ball screw;

•


  ACCESSORIES:

• Collets: 1/4", 1/8", 4mm, 6mm

• Open-end 41/46 wrench

• ER32 collet wrench

• Six T-track hold down clamps

• Vacuum table plugs

• Dust collection shoe with hose attachment

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.

Description:

This 1325 ATC CNC router is one of the most classic and popular CNC among the tool change engraving machines. It adopts the linear tool change magazine with a fast tool change speed. And the tool changing can be completed within a few seconds, which greatly improves productivity.

Features:

1. Vacuum table saves time of fixing workpiece such as MDF plate on the table.

2. 9kw air cooling spindle, powerful and the cutting ability in the workpiece is stronger.

3. The CNC machine is equipped with a separate control cabinet, more convenient in terms of operation and maintenance.

4. This machine has always been well received by large companies or someone with diverse processing needs.

Application:

ATC CNC router has an independent tool magazine of linear type or carousel type. It can change the required tools automatically during the machining process without suspending the work. The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.

Material:

Wood: natural wood, plywood, soft wood, hard wood, fiberboard, particle board, melamine board, LDF, MDF, chipboard;

Plastic and rubber: acrylic, ABS, HDPE, PVC, LDPE, UHMW, resin, double-colored board, PP, EVA;

Stone: granite, marble, slate, basalt, pebbles, ceramic, porcelain, natural and artificial stones;

Soft metal: aluminum, brass, copper, mild steel;

Composite: aluminum plastic composite, copper composite, titanium composite, zinc composite;
